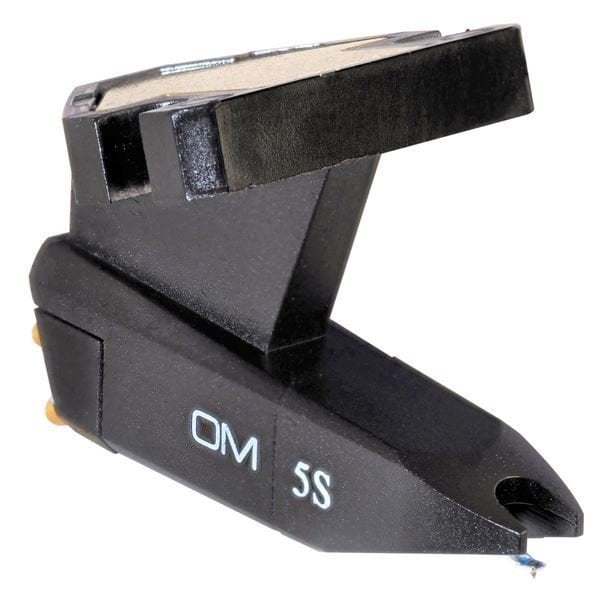

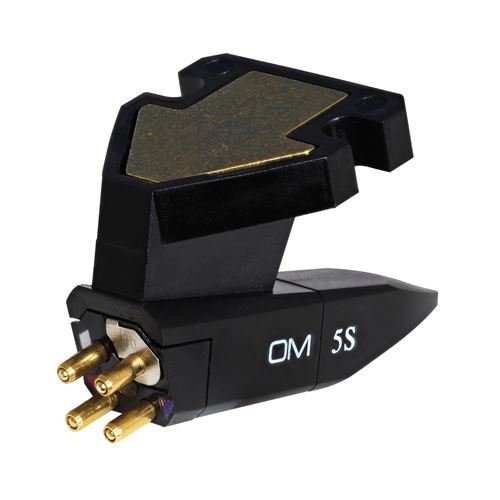

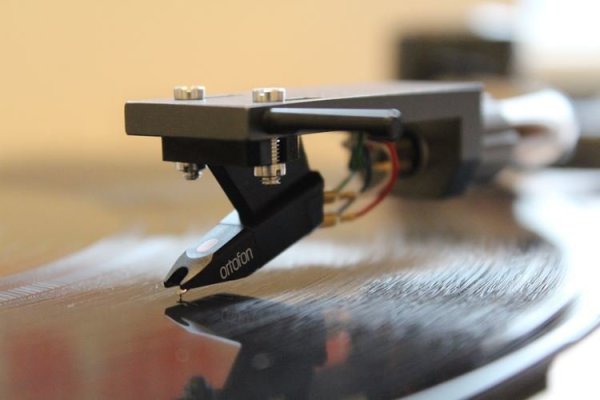

Ortofon OM 5S Pikap İğnesi
Ortofon OM serisi, en çok tercih edilen ortofon da en uygun fiyatlı ve en çok satan modellerden birisidir.
OM 5S Technical dataOutput voltage at 1000 Hz, 5cm/sec. - 4.5 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 20 dB
Channel separation at 15 kHz - 12 dB
Frequency range at - 3dB - 20-20.000 Hz
Frequency response - 20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Spherical
Stylus tip radius - R 18 µm
Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17.5 mN)
Tracking angle - 20°
*) Typical value
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-500 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight incl. extra weight - 5 g
Cartridge weight excl. extra weight - 2.5 g
Replacement stylus unit - Stylus 5S
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-500 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight incl. extra weight - 5 g
Cartridge weight excl. extra weight - 2.5 g
Replacement stylus unit - Stylus 5S
