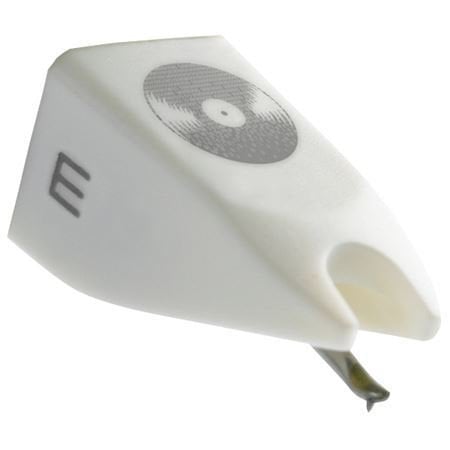

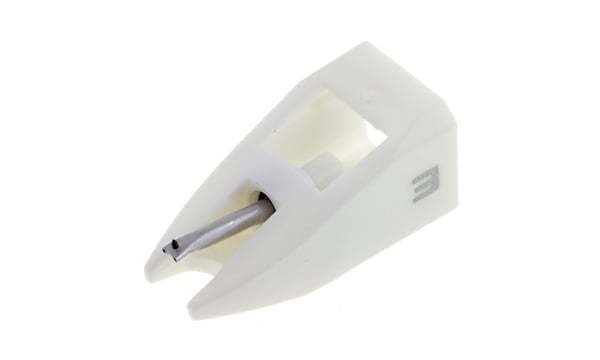

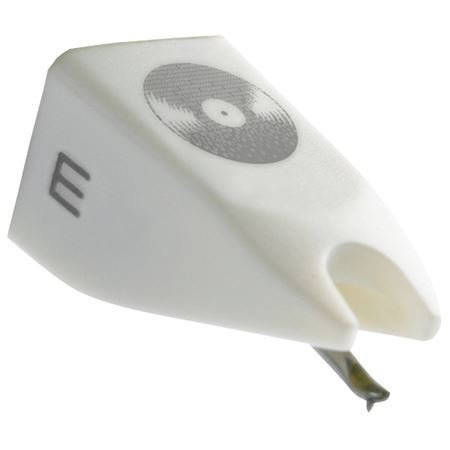

ARKIV STYLUS TECHNICAL DATA

OUTPUT VOLTAGE AT 1000HZ, 5CM/SEC. - 6 MV
CHANNEL BALANCE AT 1KHZ - 2 DB
CHANNEL SEPARATION AT 1KHZ - 23 DB
CHANNEL SEPARATION AT 15 KHZ - 15 DB
FREQUENCY RANGE AT -3DB - 20-22.000 HZ
FREQUENCY RESPONSE - 20-20.000 HZ +/- 2 DB
TRACKING ABILITY AT 315 HZ AT RECOMMMENDE TRACKING FORCE - 80 ΜM
COMPLIANCE, DYNAMIC LATERAL - 9 ΜM/M N
STYLUS TYPE - SPECIAL ELLIPTICAL
STYLUS TIP RADIUS R/R 13/25 ΜM

TRACKING FORCE RANGE - 2.0-4.0 G (20-40 MN)
TRACKING FORCE RECOMMENDED - 3.0 G (30 MN)
TRACKING ANGLE - 20°
INTERNAL IMPEDANCE, DC RESISTANCE - 750 OHM
INTERNAL INDUCTANCE - 450 MH
RECOMMENDED LOAD RESISTANCE - 47 KOHM
RECOMMENDED LOAD CAPACITANCE - 200-600 PF
CONCORDE CARTRIDGE WEIGHT - 18.5 G

COMPATIBLE WITH CARTRIDGES - ARKIV(DISCONTINUED AND NO LONGER AVAILABLE)
